I. Features:
1.Stainless steel cylinder block, with end caps connected by a new riveting process, featuring small axial dimensions, light weight and elegant appearance.
2.Good performance, high reliability and strong corrosion resistance.
3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.
4.Both ends adopt adjustable speed pneumatic cushioning structure, suitable for occasions requiring large cushioning.
II. Model
Standard Type
With Switch Type
With Valve Type
With Valve and Switch Type
| ① | Cylinder Model | See Cylinder Performance Table for details |
| ② | Installation Form | See the diagram on the next page for details |
| ⑤ | Rear Cover Form | See the diagram on the next page for details |
| Code | S | P | K |
| Name | Basic Type | Axial Port | FD-13RV |
| ⑥ | Valve Operation Mode | A: Push Type when Energized |
| B: Pull Type when Energized |
| ⑦ | Valve Operating Voltage | 5:AC220V 50HZ |
| 8:DC24V |
| ⑧ | Switch Model | See Switch Performance Table for details |
| Code | K | H |
| Name | FD-03R | FD-13RV |
| ⑨ | Number of Switches |
| ⑩ | Rod End Connection Accessories | See Diagram 10Y-1 for details |

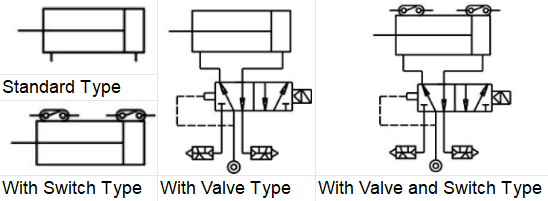

III. Graphical Symbols and Appearance
IV. Main Technical Parameters
1.Main Technical Parameters of Cylinder
| Variety | Standard Type | Switch-Equipped Type | Mesh-Equipped Type | Mesh & Switch-Equipped Type |
| Model | 10Y-3 | 10Y-3R | 10Y-3V | 10Y-3K |
| Cylinder Bore (mm) | Φ25,Φ32,Φ40,Φ50 |
| Maximum Stroke (mm) | Φ25:400;Φ32:500;Φ40:600;Φ50:800 |
| Minimum Stroke (mm) | Unrestricted | 37 | Unrestricted | 37 |
| Operating Pressure Range (bar) | 0.5～10 | 1.5～10 |
| Pressure Resistance (bar) | 15 |
| Operating Speed Range (mm/s) | 50～700 | 50～500 |
| Operating Temperature Range (℃) | -25 ~ +80 (under non-freezing conditions) |
| Operating Medium | Dry & clean compressed air |
| Cushion Type | Adjustable air cushion |
| Parameter | 2/5 Way Single Solenoid Operated Directional Valve |
| Variety | A: Push Type when Energized | B: Pull Type when Energized |
| Rated Voltage | AC220V,50Hz;DC24V |
| Allowable Voltage Fluctuation | ±10% |
| Starting Current | AC220V,50Hz;0.028A |
| Holding Current | AC220V,50Hz:0.015A;DC24V:0.09A |
| Power Consumption | AC220V,50Hz:1.8W |
| DC24V:2.2W |
| Insulation Class | B |
| Operating Pressure Range | 1.5～10bar |
Note:
1.The dimensions of cylinder accessories for the 10Y-3 series cylinders are the same as those for the 10Y-1 cylinders with Φ25～Φ50. Therefore, when calculating the installation dimensions of 10Y-3 cylinders, they can be calculated by referring to this table and the dimensions table of cylinder accessories for the 10Y-1 series.
2.Please refer to the installation forms and rod end connection forms of the 10Y-1 series for the installation forms and rod end connection forms of 10Y-3 with Φ25～Φ40.
