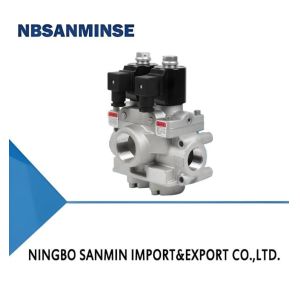

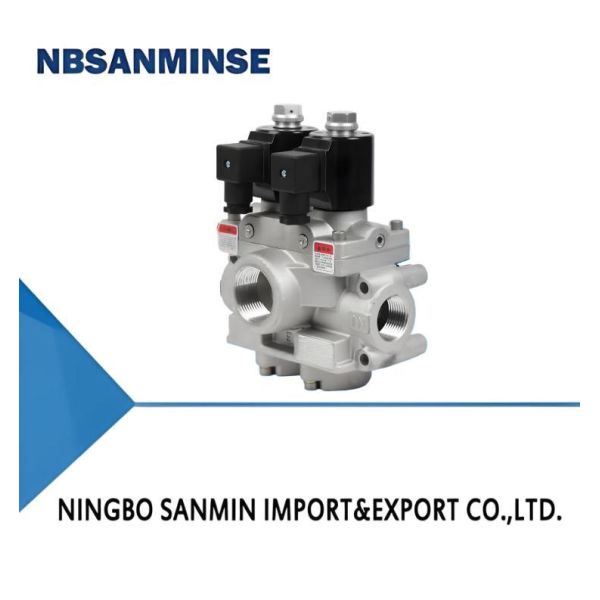

K23JSD-HSX Series double valves for press machine

Brand Name : NBSANMINSE

Model Number : K23JSD-HSX

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Working temp(℃) : 5-40

Rated Voltage : DC 24V

Holding Current : 0.32

Power (W) : 7.7

working pressure(Mpa) : 0.2-0.7

Contact Now

Features:
On the basis of many years of use of the punching machine, further improve the responsiveness, the pursuit of reliability.
The new solenoid uses DIN terminals and coil locks to ensure highwater resistance.
A complete range of airclutches and brake controls for small, medium, large and high speed mechanical stamping.
The valve structure with large exhaust characteristics and fast response can achisve small deviation.
When a vavefails, the cross-sectional area of the exhaust gas pathis greaterthan the cross-sectional area of the supply
gas path. The pressure on the OUT sideis lower than the operating pressure of the clutch or brake, so the press does not
operate. The safety factor is higher than that of a singlesolenoid valve configured in the stamping machinery.
Standard equipment with manuallyoperated buttons is regularly checked for easy maintenance.
Order Code:
K23JSD-HSX Series double valves for press machine
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Type: Pipe Connection
⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2
⑧ Product Model: HSX Series
⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
Symbols:
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
K23JSD-HSX Series double valves for press machine
