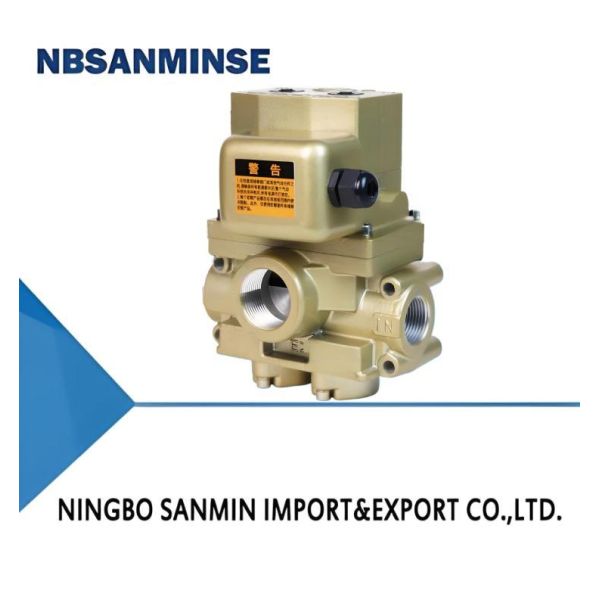

K23JSD-HSCO Series double valves for press machine

Name: K23JSDHSCO Series double valves for press machine
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : K23JSD-HSCO

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Rated Voltage : DC 24V

Holding Current : 0.32

Power (W) : 7.7

Working temp (℃) : 5-40

working pressure (Mpa) : 0.2-0.7

Contact Now

Features:

K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-

ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single

solenoid valve.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

K23JSD-HSCO Series double valves for press machine

Outlook Dimension:

Specification:

AC voltage:

DC voltage:
